Hydraulic square ear up square machine[wholesale price]

Reference Price: 33000.00 yuan (For the latest quotation, please consult)

Starting batch: ≥1 set

Custom processing: Yes

Brand: Lucky Can

Model: ygf180-2c

Product alias: hydraulic square machine

Use: production line

Packing type: cans, boxes, barrels, belts

Applicable industries: chemical, food, medicine, hardware, machinery

After-sales service: call

product description:

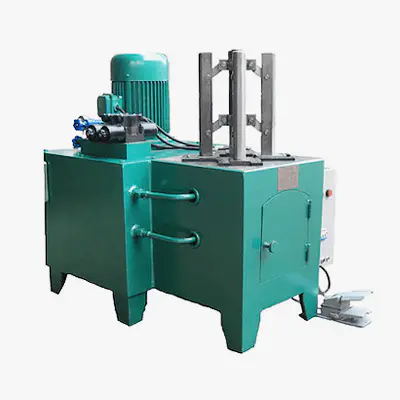

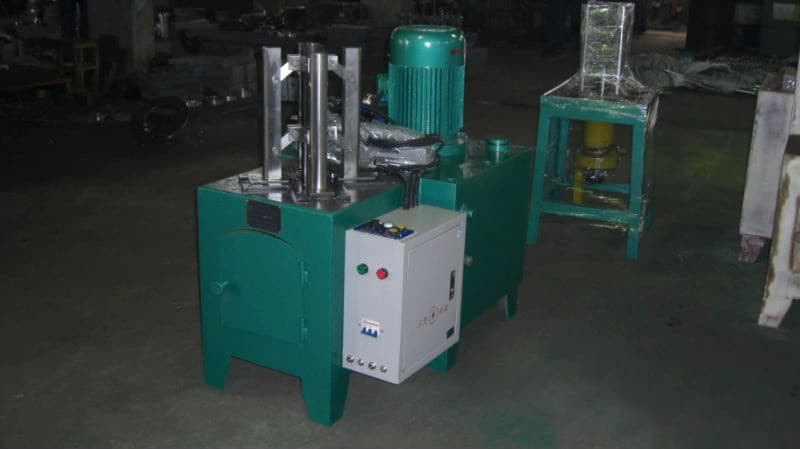

The ygf180-2c hydraulic squaring machine is a hydraulic squaring equipment designed and developed by our factory with strong technical strength and rich industry experience, after market exploration. It is a kind of mechanical tank (barrel) equipment that is hydraulically driven to convert the seam-welded special-shaped tank body into a square one at a time.
This machine has the characteristics of compact design, light structure, innovative performance, high efficiency, stable quality and convenient operation.
The electrical system is controlled by PLC, imported electrical components and hydraulic seals are selected, and the solenoid valve part is driven by field effect tubes, instead of traditional relays, which greatly improves the stability and service life of the machine.
The main technical parameters:
Model: ygf180-2c
Diagonal line: ≤φ320mm
Tank height: ≤l390 mm
Iron skin range: 0.2～0.3mm
Production capacity: 12～15pcs/min
Motor power: 2.2 kW
Dimensions: 1240x700x1100 mm
Weight: 550 kg
Hydraulic square canning machine ygf180-2c -Product address: http://www.zslekai.com/product/18sfg/213.html
