Reference Price: 30000.00 yuan (For the latest quotation, please consult)
Starting batch: ≥1 set
Custom processing: Yes
Brand: Lucky Can
Model: yzj180
Product alias: hydraulic crimping machine
Use: production line
Packing type: cups, cans, boxes, barrels, boxes, cans, other
Applicable industries: catering, chemicals, food, toys, medicine, other
After-sales service: call
This machine is suitable for all kinds of chemical and food packaging containers. The tank body after sealing the bottom is hydraulically driven, and the tank body is rolled up and ribbed at one time to enhance the strength of the tank body.
product description:

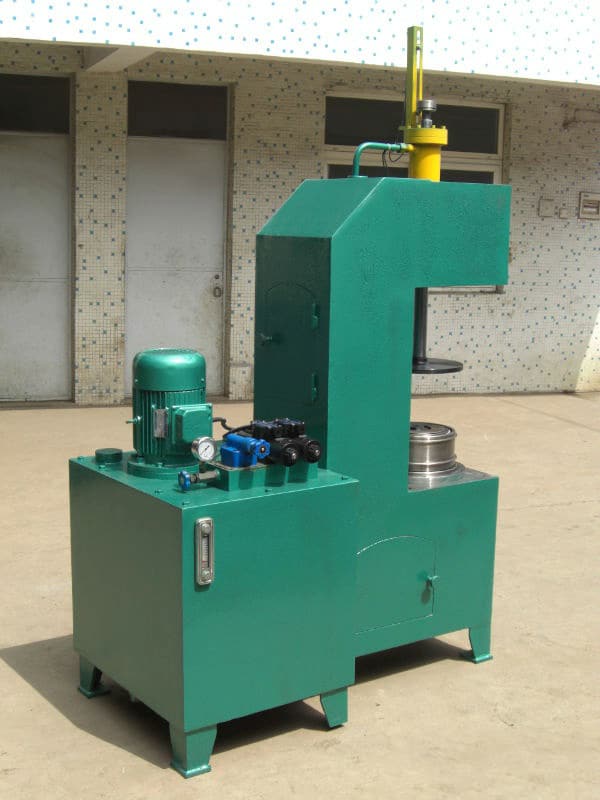

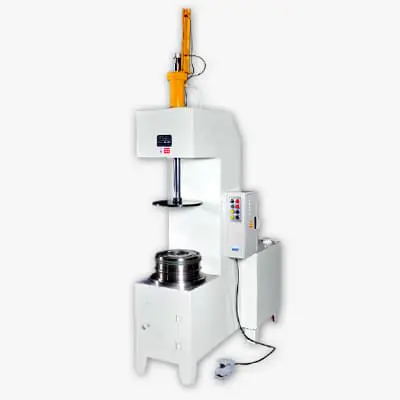

The yzj180 hydraulic crimping machine is a hydraulic crimping machine designed and developed by our factory with strong technical strength and rich industry experience, after market exploration. It is a kind of mechanical tank (barrel) equipment that is hydraulically driven and completes the round-shaped tank body after the previous process is completed at one time.
This machine has the characteristics of compact design, light structure, innovative performance, high efficiency, stable quality and convenient operation.
The electrical system is controlled by plc, imported electrical components and hydraulic seals are selected, and the solenoid valve part is driven by field effect tubes, instead of traditional relays, greatly improving the stability and service life of the machine.
The main technical parameters:
Equipment name: hydraulic roll mouth stretcher
Model: yzj180
Tank diameter: ≤φ300mm
Tank height: ≤l400mm
Iron skin range: 0.2～0.5mm
Production capacity: 12～15pcs/min
Motor power: 2.2 kW
Dimensions: 1300x800x2220 mm
Weight: 620 kg
yzj180 hydraulic crimping machine Product address: http://www.zslekai.com/product/fbtscx/208.html
