Key points for the use and debugging of the sealing machine

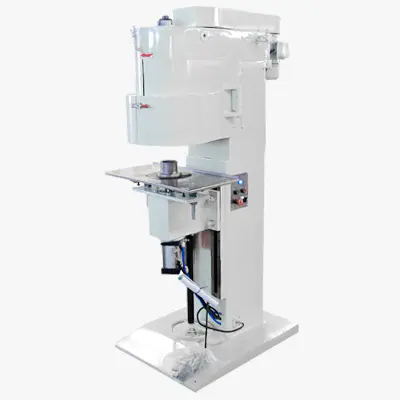

The can sealing machine is a single-head fully automatic can sealing machine with two pairs of roll seam sealing wheels, equipped with a vacuum system that can suck the contents of the can. The advanced automatic capping mechanism is safer and more reliable than the traditional capping mechanism, and it is an ideal equipment for can sealing in canned food factories and beverage factories.

1. Each turn of the sealing carousel has 12 stations (that is, 12 equal parts). The splitter parameters, deceleration and parameters listed in the purchased parts list are for reference only, because they need to be determined according to the output per minute required by the user.

2. A certain amount of butter (molybdenum disulfide grease) is always kept in the gear box.

3. Refuel the butter nozzle once.

4. There should be oil seals on both sides of each radial bearing (head of 6).

5. The round pin φ8 should be pressed in, and then a thin spring steel sheet z (thickness d = 0.5 ± 0.02 after being ground by a surface grinder) is used to adjust the gap between d = 0.03-0.05, and often lubricate.

6. Before installing needle roller bearings and cylindrical roller bearings, lubricate each ring.

7. The plane bearing should also be greased during use.

8. The shape and structure of the sealing roller and roller shaft are for reference only.

9. The material of the turntable is hard plastic in South Korea, bakelite or aluminum alloy plate is used in the world. One is not to attract magnetism, the other is to be easy to process and maintain accuracy, and the third is not to deform. Please choose reasonably.

10. For jars of different diameters, turntables and pressure heads with different positioning arcs are used.

11. The automation and coordination of electrical appliances, segmentation, indexing, and cylinder production are controlled by plc and designed by electrical engineers.

12. An additional conveyor belt without motor is used for emptying the tank at the inlet side, about 2mm long.

13. The guard and door can be made according to the base and referring to the video.

14. The electronic photoreceptor assembly at the stop point of the turntable can be installed on the workbench below the turntable. It can also be installed one by one with reference to this general drawing or video, which is determined by the electrical engineer.
