How to use the electric can sealing machine?

use

This product is suitable for the sealing of various round iron, glass, plastic paper cans, etc., with reliable quality, simple and light operation, and is an ideal equipment necessary for the food and beverage industries.
The main technical parameters:
Production capacity: 10-15/min
Adaptation range: tank diameter φ45-φ200mm
Tank height 39-250mm
Spindle speed: 620v/min 520v/min
Motor: jy7134 0.37kw (vertical)
jy7134 0.37kw (horizontal)
Dimensions: 1350×700×450 (mm)
Total weight of equipment: 88kg
(Note: For different tank diameters, corresponding upper pressure heads and trays are required; two tanks with a height difference of less than 80mm can share a lifting rod, and a lifting rod should be added if the height difference is greater than 80mm.)
Mechanism principle and operation method:
This machine is composed of motor, belt pulley, main shaft, upper pressure head, column, lifting table, left and right hobs, camshaft and cam, gearbox, gear frame, etc.
The motor is driven by a V-belt to drive the main shaft and the upper pressure head to rotate, and the tank body rotates synchronously. The upper pressure head also serves the purpose of compressing the tank lid and sealing the tank body. The pressing force is moderate, and the left and right hobs are on the camshaft. Under the action of the upper cam, the tank lid is pressed from left to right, and the sealing process is completed.
Adjust the tank diameter: loosen the adjusting screw on the support plate, align the pinch arm bearing to the high-quality point of the cam on the camshaft, adjust the pressure of the left and right hobs to press the tank cover, fine adjustment can be done with the eccentric shaft adjustment of the hob.
Adjust the height of the tank: loosen the adjustment screw under the lifting table, adjust the height and then tighten the nut.
Precautions for use and maintenance:
1. Press the left and right rollers tightly on the lock pad before use, and clean the lifting table.
2. Fill each rotating part with lubricating oil.
3. If any abnormal situation is found, stop the machine immediately for inspection and troubleshoot.
4. Connect the ground wire!

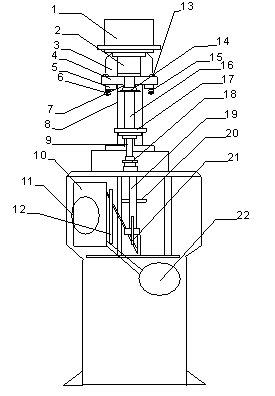

Description of the drawings:
1. Pulley cover 2. Spindle 3. Upper motor 4. Support plate 5. Pressure roller arm 6. Hob
7. Small cam 8. Column 9. Lifting adjustment screw 10, Gearbox 11, Big pulley 12, Big gear 13, Adjusting rod 14, Upper pressure head 15, Adjusting pad 16, Camshaft 17, Lifting table 18. Adjusting nut 19. Lifting rod 20, bevel gear 21, big cam 22, lower motor
