Special-shaped Pneumatic Sealing Machine ft2002a Type [Affordable Price]

Reference Price: 38000.00 yuan Participate (please consult for the latest quotation)

Starting batch: ≥1 set

Custom processing: Yes

Brand: Lucky Can

Model:ft2002a

Product alias: pneumatic and generous

Use: production line

Packing type: cups, cans, boxes, barrels, boxes, cans, other

Applicable industries: catering, chemicals, food, toys, medicine, other

After-sales service: call

product description:

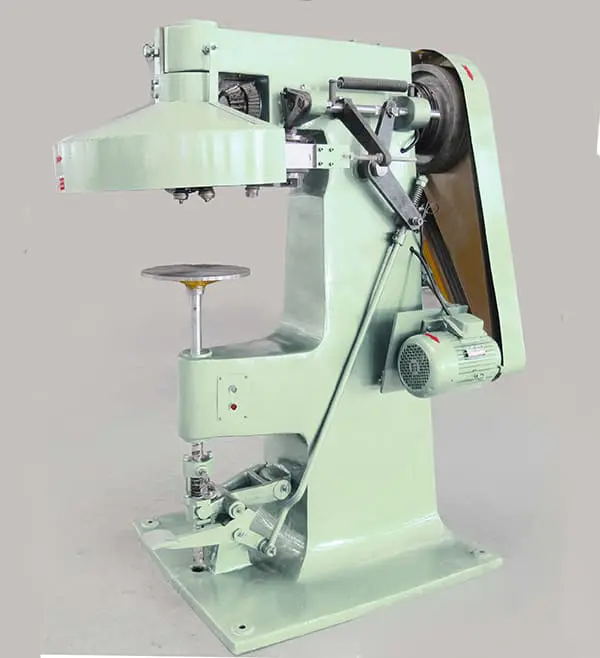

ft2002a special-shaped pneumatic sealing machine is a two-wheel special-shaped sealing equipment with mechanical and electrical integration designed and developed by our factory with strong technical strength and rich industry experience. It is currently the more advanced special processing equipment in metal can factories, mainly used for the crimping of non-circular cans. The biggest advantage of this equipment is that the entire can-making work is done by pneumatic and mechanical, and the product does not rotate during the sealing process. The upper and lower cams are connected by hand to drive the profile roller and reel to complete the crimping. Only need to install and take work, greatly reducing the labor intensity of the operator, but also to ensure the consistency of parts processing.

The transmission parts of the machine are tightly matched, stable transmission, low noise, light and flexible structure, convenient operation and simple maintenance.

The electrical system adopts PLC control and imported electrical components, which greatly improves the stability and service life of the machine.

The main technical parameters:

Equipment name: special-shaped pneumatic sealing machine

Model:ft2002a

Diagonal line: ≤400mm

Tank height: ≤l380mm

Iron skin range: 0.2～0.7mm

Production capacity: 8-10 pcs/min

Motor power: 2.2 kW

Dimensions: 1670x940x2000 mm

Weight: 1200 kg
