Price of hydraulic pre-rolling flanging machine

Reference Price: 28000.00 yuan (for the latest quotation, please consult)

Product Brand: Lucky Can

Product model: yzf180-2

Custom processing: Yes

Packing type: cups, cans, boxes, bottles, barrels, bowls, boxes, belts, cans, other

Applicable industries: catering, chemicals, food, toys, medicine, hardware, machinery, other

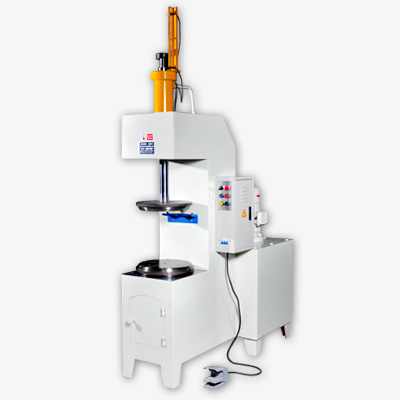

The yzf180-2 hydraulic pre-rolling and flanging machine is a hydraulic pre-rolling and flanging machine designed and developed by our factory with strong technical strength and rich industry experience, after market exploration. It is a kind of mechanical tank (barrel) equipment that is hydraulically driven to complete and roll up the round tank body after the previous process is completed at one time.

This machine has the characteristics of compact design, light structure, innovative performance, high efficiency, stable quality and convenient operation.

The electrical system is controlled by PLC, imported electrical components and hydraulic seals are selected, and the solenoid valve part is driven by field effect tubes, instead of traditional relays, which greatly improves the stability and service life of the machine.

The main technical parameters:

Tank height: l≤400 mm

Tank diameter: φ≤400 mm

Thickness of iron sheet: 0.2～0.5 mm

Production capacity: 12-15 pieces/min

Motor power: 4.0kw

Machine volume: 1300x800x1950 (mm)

Machine weight: 600kg
